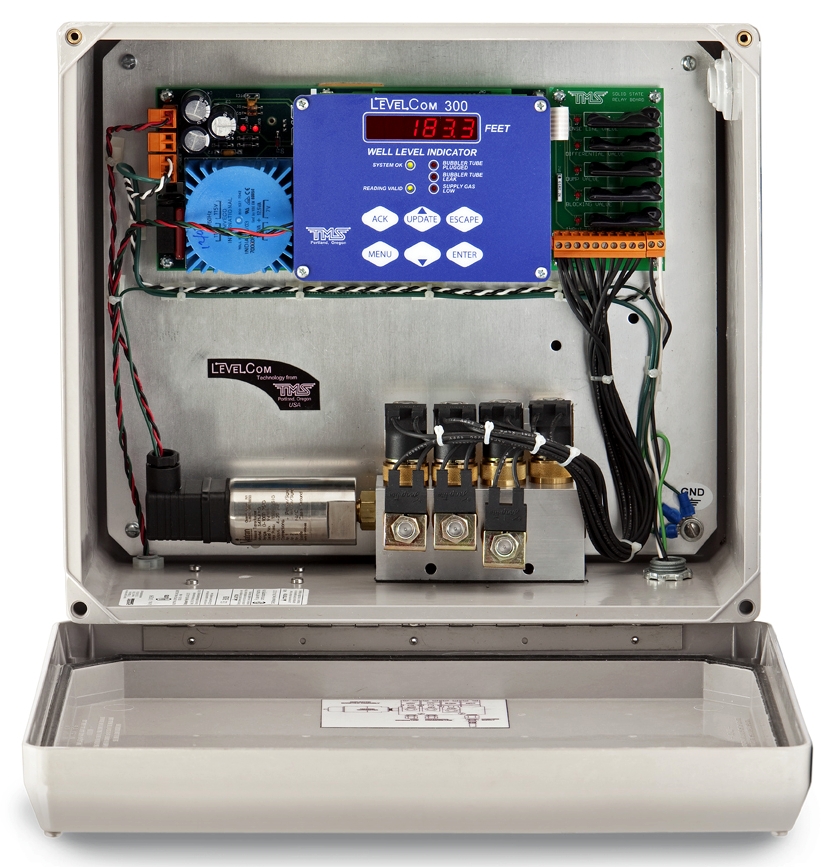

LevelCom LC-300 Well Level Monitor

Developed to meet the industry’s needs for accurate, cost effective and dependable water level monitoring, the LevelCom 300  eliminates the problems associated with traditional pressure sensors and cables in down hole applications.  The LevelCom 300 Well Level Monitor incorporates the accuracy and proven technology of a bubbler with a full compliment of SCADA capabilities to give you the best features in liquid level gauging.

 Some features of the LevelCom 300 are:

• 20 – 2000 foot depth range
• Timing of sample cycles
• Manual input of specific gravity
• Four alarm setpoints with hysteresis
• Analog and/or digital outputs
• Wireless Communication to LAN or Spread Spectrum RF
• Calibration verification -  the sensor is connected to the bottom of the well by a gas filled bubbler tube, not at the bottom of the well
• Measures wellhead pressure eliminating errors from using  multiple sensors for this measurement.
• Self Diagnostics -  detects hardware errors, sense and supply line problems including leaks, plugged lines and low supply gas pressures  and communicates them via the display.
• Modbus interface provides plug and play to data telemetry systems allowing remote read out of well level.

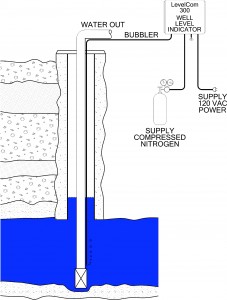

• Simple 3 step installation; power hook up, connection to a sense tube in the well and a clean high-pressure nitrogen gas cylinder. Depth in English or metric units
