LevelCom Junior (LC-101)

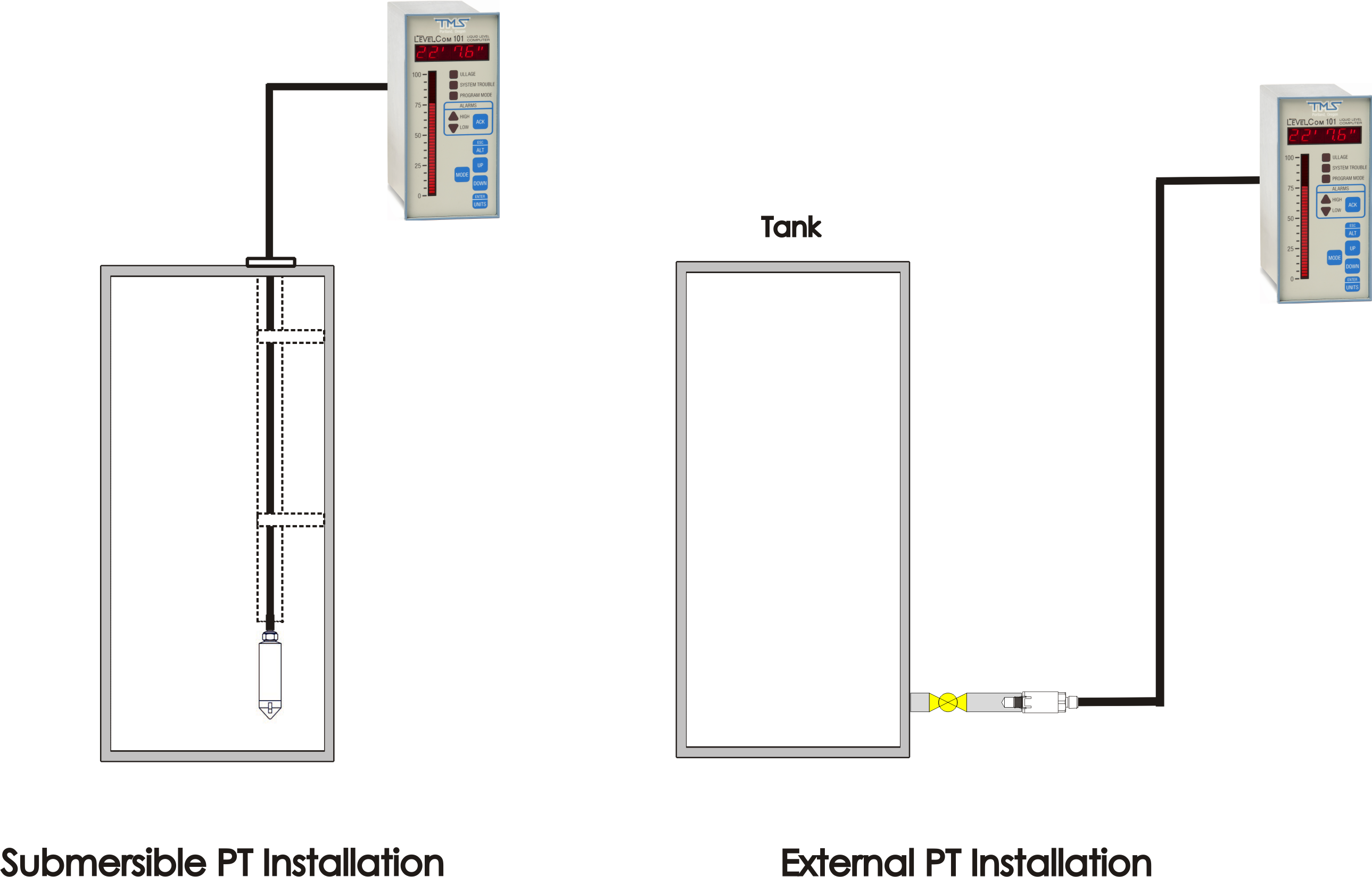

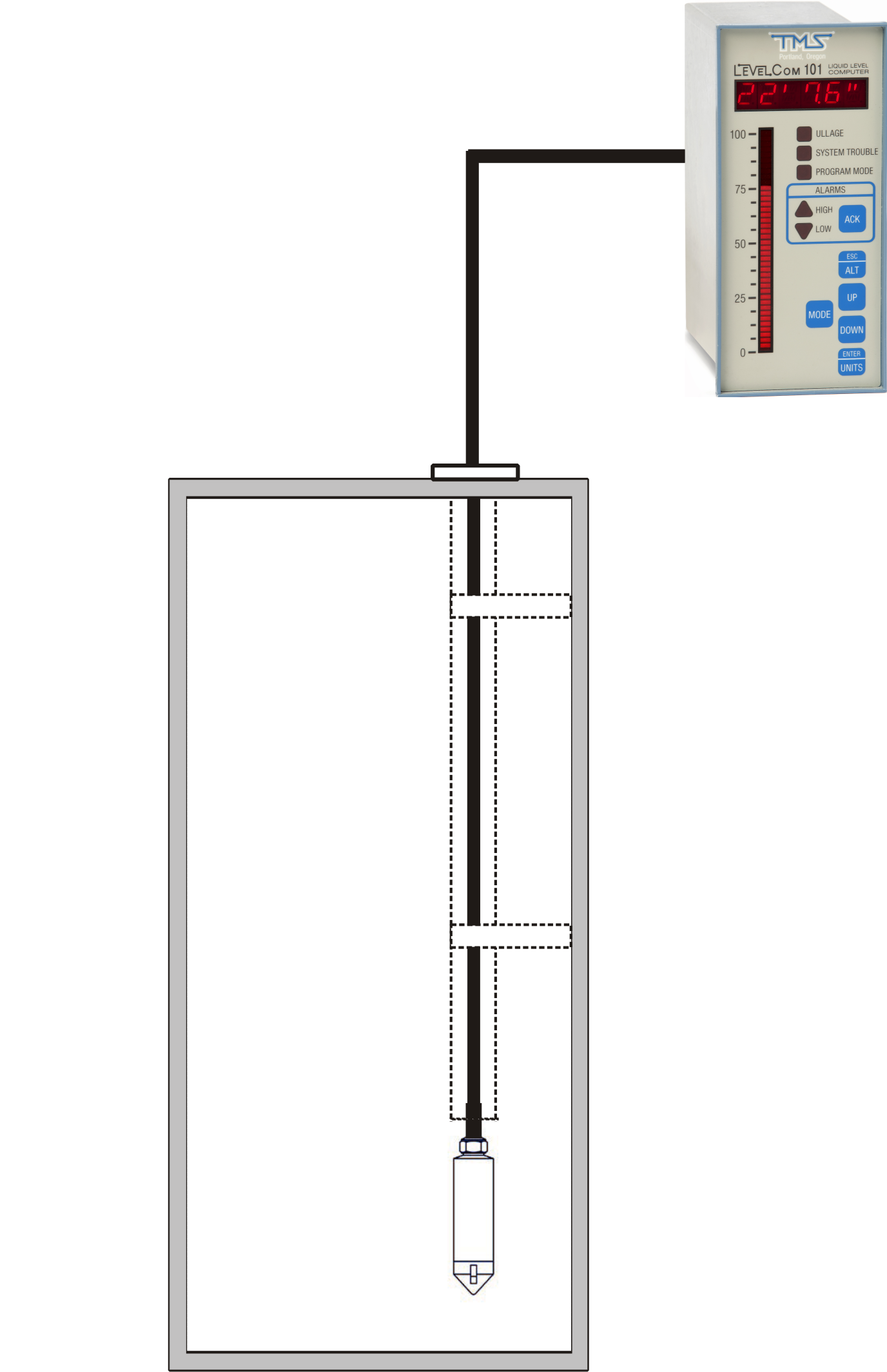

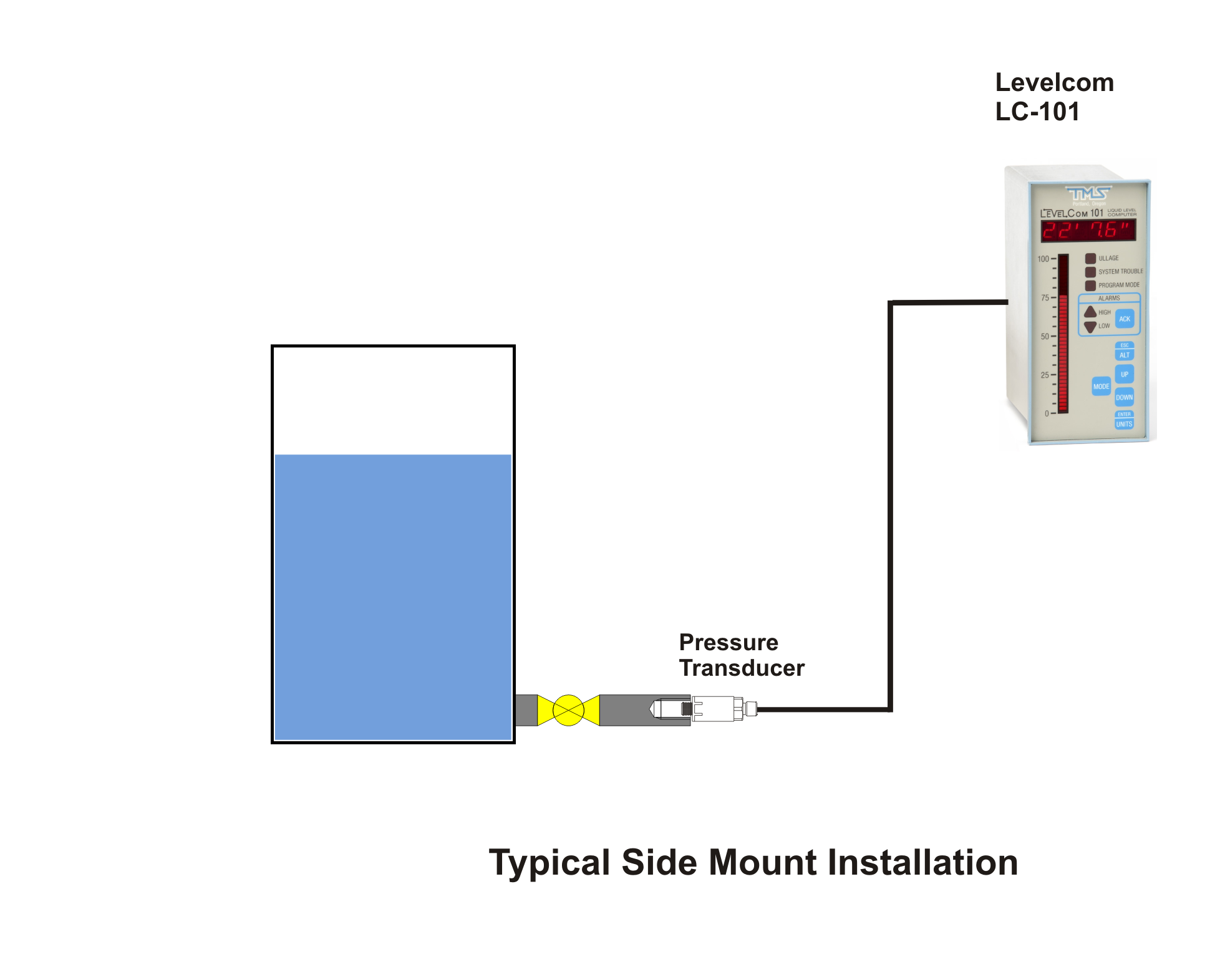

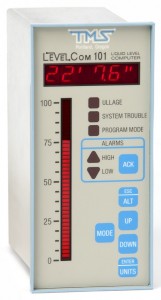

The LevelCom Junior (LC-101) is a  bar graph display is specifically made for tank level gauging.  The Junior has much of the same functionality as the LevelCom LC-100 bubbler but works with Pressure Transducers, Capacitive, and Ultrasonic level sensors measuring the 4-20 mA analog signal from the sensor and communicating externally via Modbus.  The Junior has a six character digital display combined with a 40 segment bargraph, reads in depth, volume or mass;  has alarms, status lights, and push button panel for programming the configuration interface.

The LevelCom Junior is self-diagnostic and can detect hardware errors like a failure of the sensor signal, or loss of the digital communication signal in the case of a digital repeater.  If an abnormal condition is detected, the LevelCom Junior will display the appropriate error message on the digital display and activate an alarm to alert the operator.

The LevelCom Junior includes three relays.  Two relays have form “C” contacts and can be configured for either alarm or control functions.  The third relay has a single form “A” contact and is intended to drive a warning horn for local alarm indication.

The Junior can work as a stand-alone unit or can be panel mounted in multiples to meet the applications requirements. The LC-101 also functions as a digital repeater for the LevelCom LC-100 bubbler.

Key Features

Displays accurate volume and weight; depth in feet & inches

• 40 segment bar graph displays tank level and alarm set points
• Programmable alarm & control points
• Integrates with Data Systems
• RS422 /485 Modbus connectivity
• Complete self diagnostics
• Three analog inputs allow density & pressure compensation
• Long service life
• Small Footprint
• Wide range of applications
• Easy installation
• UL approved

If you require information rather than data,  the LevelCom Junior, (LC-101) is the choice.
