LC-100
The Leader in Solving Problem Fluid Applications
The TMS Levelcom LC series pulsed bubbler is one of the most versatile technologies available in continuous level measurement with more capabilities and functions than most other tank level monitors on the market!

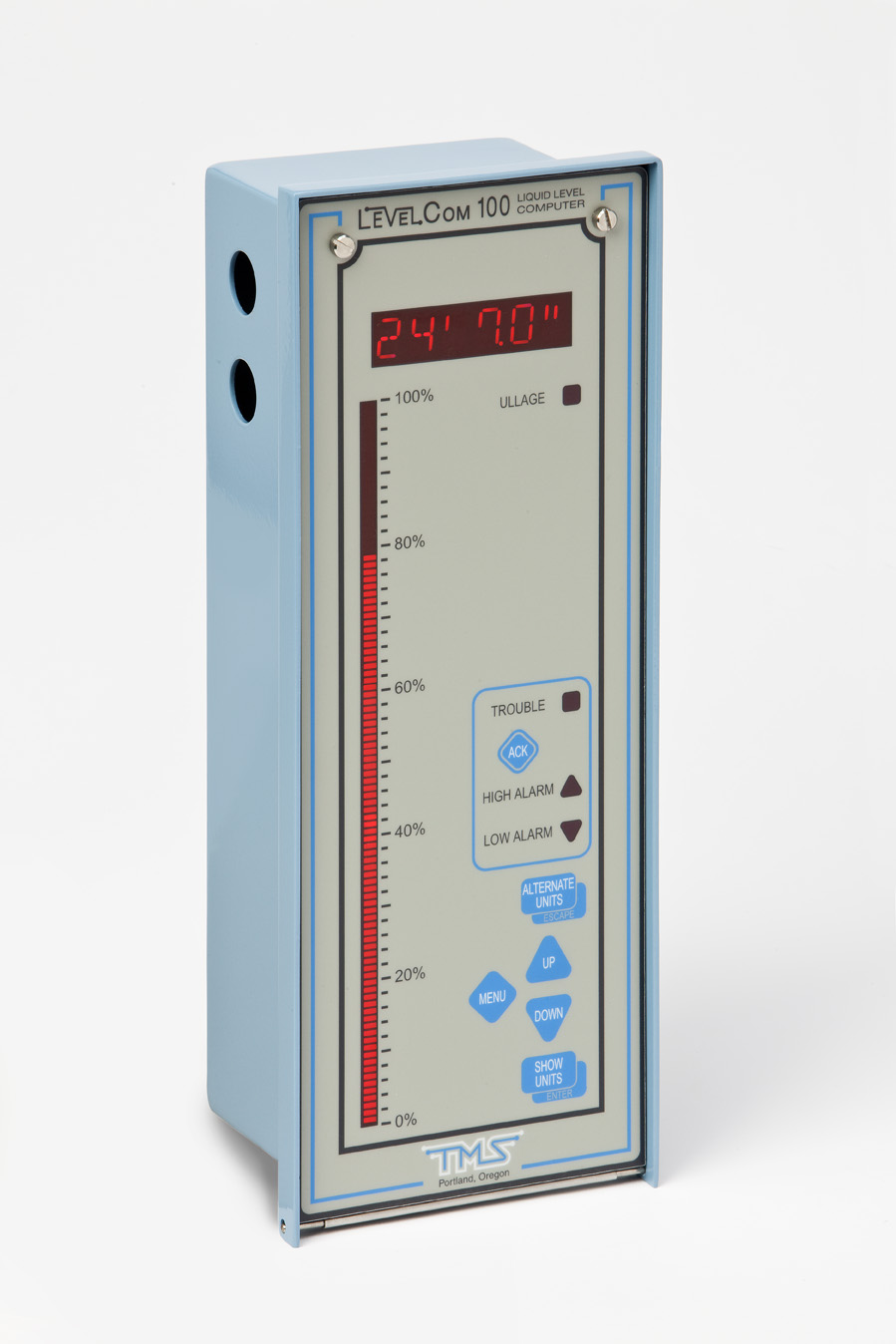

The LevelCom LC-100 Tank Level Indicator excels in applications that are problematic for other level measurement sensors. The LC-100 provides continuous level measurement in water, aqueous solutions, hazardous and corrosive liquids with varying viscosities, temperatures and specific gravities along with applications where radar, ultrasonic, float or microwave level sensors have proved undependable or where the fluid properties and tank environment cause premature sensor failure.

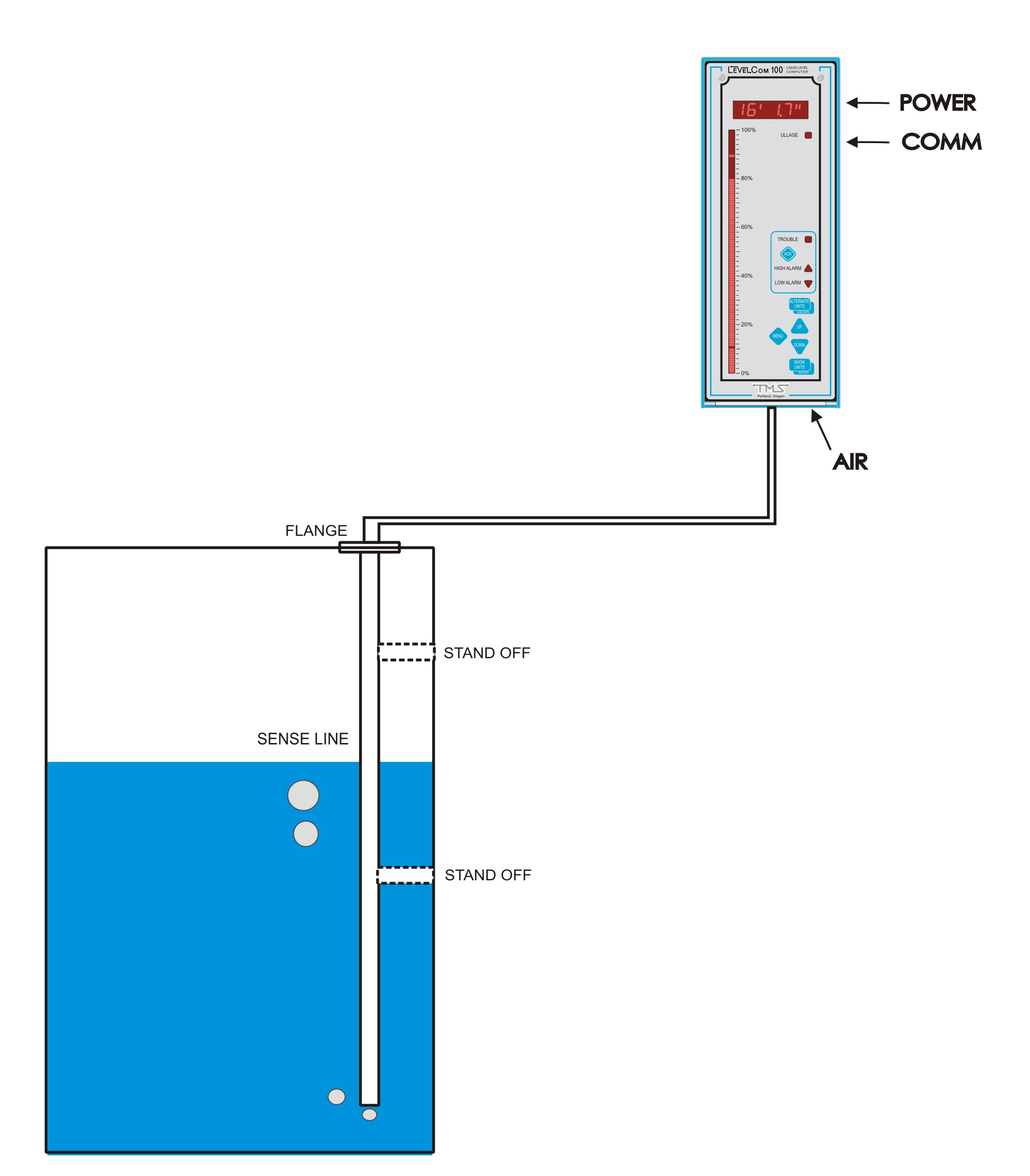

The LC series continuously measures liquid levels without the need for a sensor, cable or transducer in the tank, eliminating common electronic failure points while providing accurate level readings and dependable performance. Maintenance if required, is performed from the top of the tank, eliminating the need to empty the tanks content, clean the tank and have it certified as safe before allowing workers to enter. Since the point of measurement on the LC-100 has no electrical components, it is a good choice for classified “Hazardous Areas”. The absence of electronics in the tank coupled with the ability to locate the controls up to 500 feet away from the tank enables the pneumatic plumbing to isolate hazardous areas from the safe areas allowing workers to perform any service required in a safe environment, reducing costs and minimizing risks.
TMS’ s “Advanced Bubbler Technology” which combines computer and pulsed bubbler technologies, enables the LC series to have automated operating cycles, SCADA and self-diagnostic capabilities. All values and alarm set points are displayed in either English / Metric units of measure, (depth, volume or weight) on the digital display. LevelCom LC series tank level indicators work in any shape of tank with both metallic and non metallic tank materials whether the tanks are vented or pressurized.

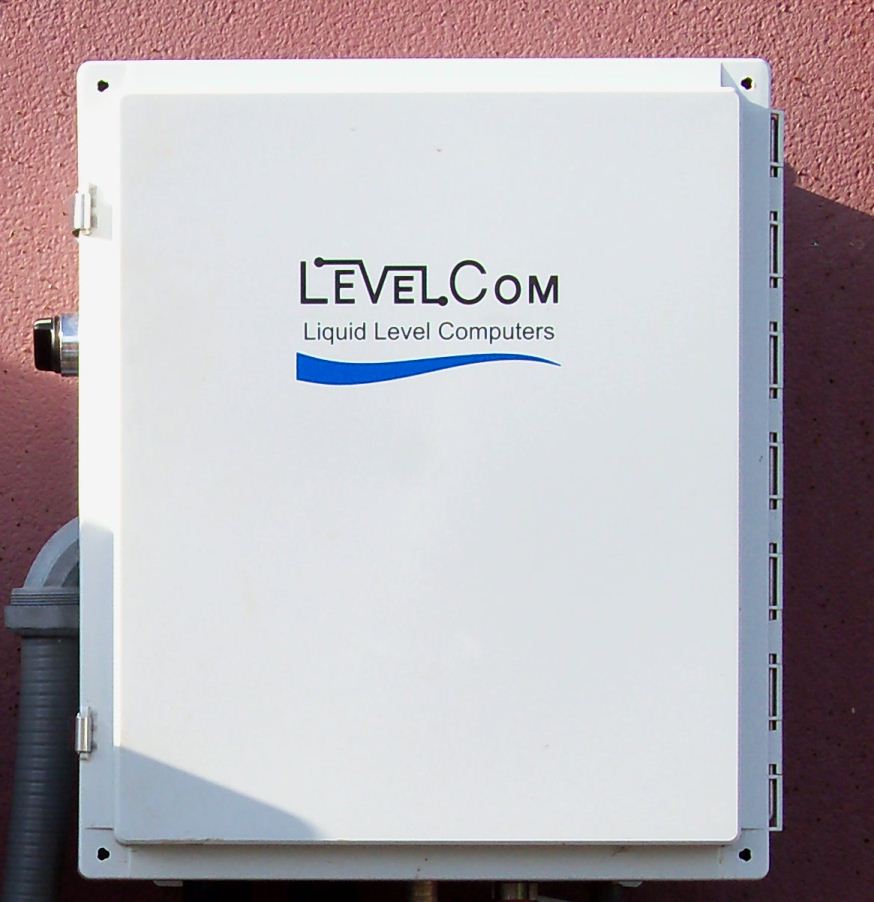

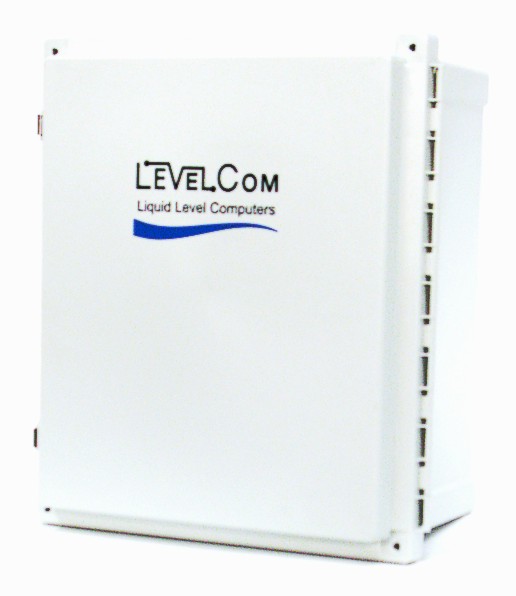

LC -400 Water Level Monitor
Benefits and Key Features of “Smart Bubbler Technology”
-
Unaffected by corrosives, caustics, acids, slurries and temperature.
-
Allows for placement of the controls away from tank and harsh or hazardous environments.
-
Level, weight and volume display (English / Metric)
-
Field configurable with High and Low alarm functions, multiple set points and specific gravity corrections
-
Diagnostic capabilities detect leaks, plugged lines, pressure problems, and hardware errors.
-
Modbus connectivity standard with Profibus available
-
110VAC, 220 VAC and 24VDC power supplies standard
-
Network Capable, Integrates with SCADA systems
-
Control relays can be set to activate variable frequency pumps and other devices
-
Easy and inexpensive installation /refit
-
Up to 70% less than radar sensors
-
UL Approved
Partial list of industries that currently use LevelCom technology:
- Silicon Foundries & Wafer Manufacturers
- Advanced Ceramics Processing
- Building Products
- Mining
- Defense
- Municipal Water Districts
- Landfills
- Wastewater Treatment
- Oil & Gas
- Agriculture
Typical LevelCom LC-100 applications include:
- Oils
- Mix Tanks
- Wash tanks
- Foaming liquids
- Acids
- Solutions
- Slurries
- Water
- Leachate
- Viscous fluids
- Distillate
LevelCom’s can use either supply air or nitrogen for in field applications. Potable water and food and beverage applications are equipped with sterile air filters.
Optional data logger, pump protection alarms and controls for wells, tanks, sumps, reservoirs and settling ponds
Customer quotes
” LevelCom fixed the foam problems in our tank gauging system when nothing else worked! “
” We had contant problems with our tanks running low and causing slow downs or line stoppages in manufacturing. All level sensors we tried would not last long and when they failed the line stopped. Once we installed the LevelComs, we got accurate tank levels. The machines have been in service for many years, are very reliable and maintenance cost are down. The service we received from LevelCom is very good!
