ENGINEERED FOR  MAXIMUM VERSATILITY!

The LC-101 is a functional interface and display for any gauge that uses a 4-20mA output.

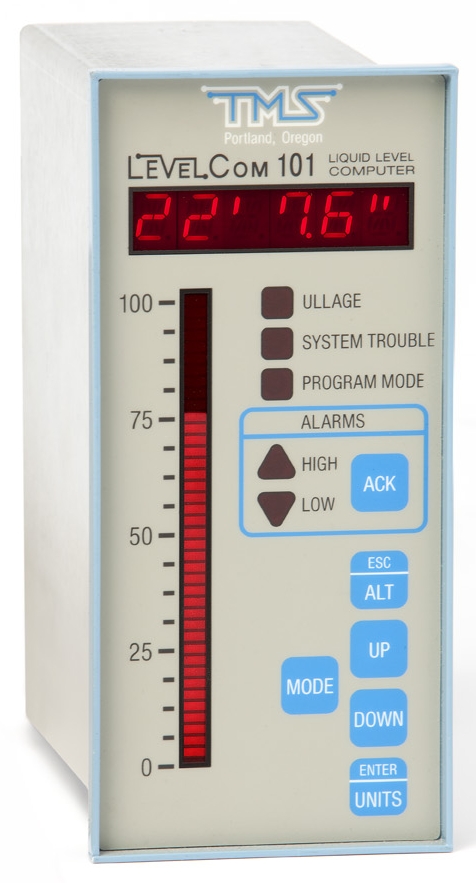

The LevelCom LC-101 is designed to perform  as a functional interface and display for any type of in tank level or pressure sensing transducer  utilizing a 4-20 mA output.  The LC-101 provides a  fast and accurate visual display in both bar graph and numerical values so operators can easily  monitor  tank levels. .  The LevelCom 101 measures the 4-20 mA analog signal from a pressure transmitter in the tank and communicates it via  a 6 character digital display combined with a 40 segment bargraph, alarm and  status lights.  A touch panel provides access to the configuration interface.

The LevelCom 101 is self-diagnostic and can detect hardware errors, like a failure of the sensor signal, or loss of the digital communication signal in the case of a digital repeater.  If an abnormal condition is detected, the LevelCom 101 will display the appropriate error message on the digital display and activate an alarm to alert the operator

The LevelCom 101 includes three relays, two relays have form C contacts and can be configured for either alarm or control functions.  The third relay has a single form A contact and is intended to drive a warning horn for local alarm indication.

The LC-101 can be configured as a remote display or digital repeater device for the LevelCom LC-100 Liquid Level Computer providing identical readout and display  as the LC-100.

FEATURES:

• Three Analog inputs-allows density and pressure compensation
• Displays depth, weight, volume, innage or ullage
• Applicable of all shapes of tanks, no custom scales required
• Forty segment bargraph displays tank level and alarm setpoints
• Programmable alarm and control points
• Completely self diagnostic alarms on equipment failure
• RS 422 / 485 communications
• Can be panel mounted in gangs for multi-tank applications
• Interfaces with existing control and information systems (SCADA) with MODBUS connectivity

 APPLICATIONS

• Ballast
• Fuel Oil
• Water
• Lube Oil
• Sludge
• Digital Repeater

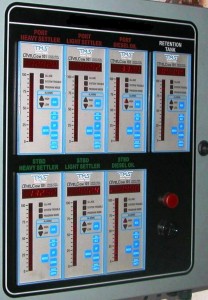

LC-101 6 gang panel mount
