LC-100 Tank Level Indicator
Customer Comments
” Very solid ballast automation system.”
“TMS Levelcom has been in business for more than 15 years and has successfully supplied their sensors on many ships and rigs, both commercial and military. Their sensors are robust and extremely accurate and they are the best I’ve used over the past 32 years of building ballast control systems. ”

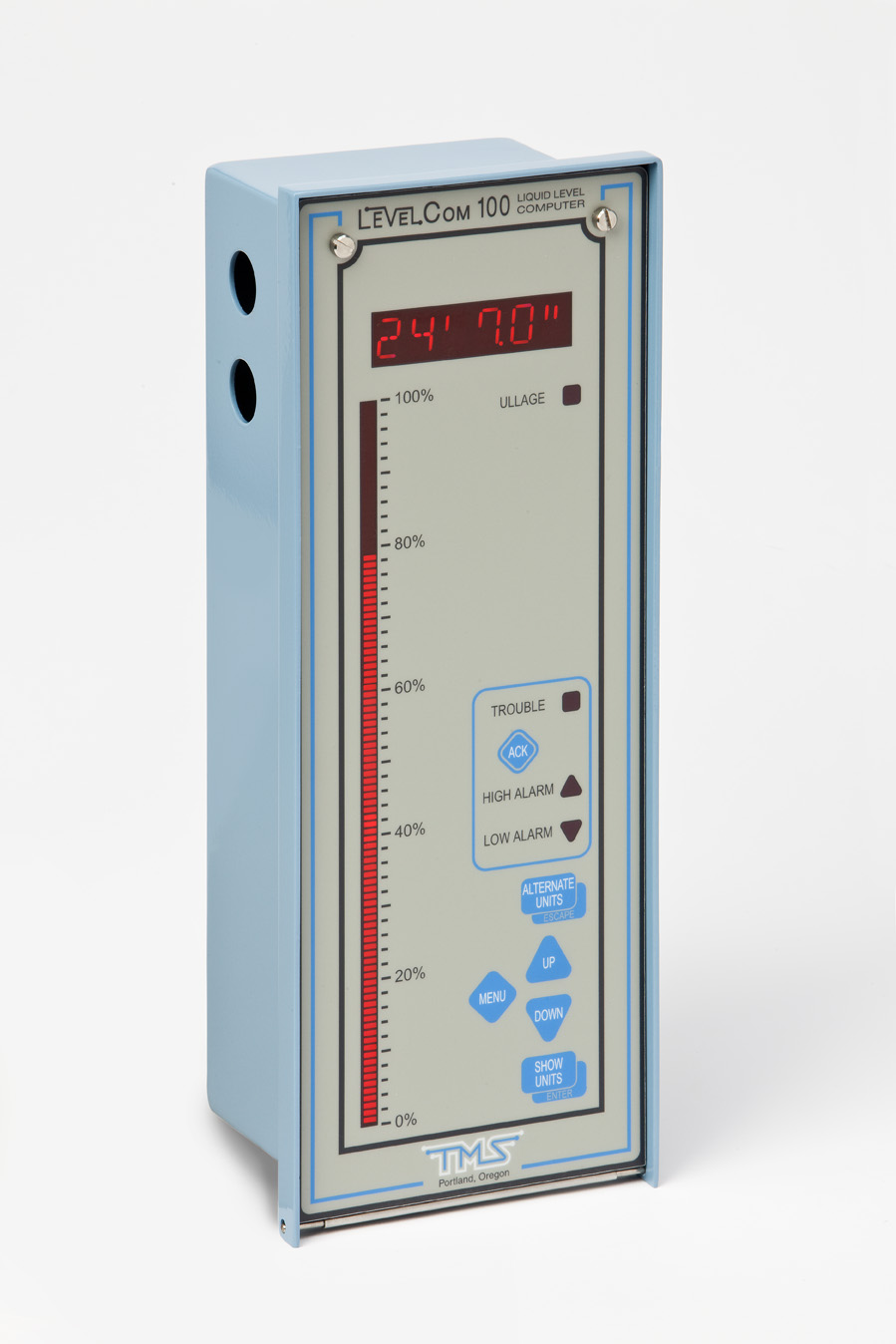

The LevelCom LC-100 Liquid Level Computer provides a robust, reliable and compact unit that gives you the capability to manage, monitor and control liquids in any shape tank.
LevelCom is the leader in “Advanced Bubbler Technology” combining the proven reliability and accuracy of bubbler with the data management and control of a PC.
The LevelCom 100 utilizes pulsed pneumatic (bubbler) depth sensing technology and resolves the problems long associated with continuous flow bubblers. The LevelCom 100 is engineered to meet the demands of marine and industrial applications by incorporating computer technology with state of the art features into a microprocessor-based tank level indicating and process control system. The LC-100 combines automatic leak detection, plugged line detection, and automatic “hardware zero” into an easy to use interface. If an abnormal condition is detected, the LC-100 will display the appropriate error message on the digital display or provide the data on the communication bus to alert the operator.
APPLICATIONS
- Ballast Control
- Fuel Oil Management
- Wastewater
- Distilled & Potable Water
- Viscous Fluids
- Hazardous Substances

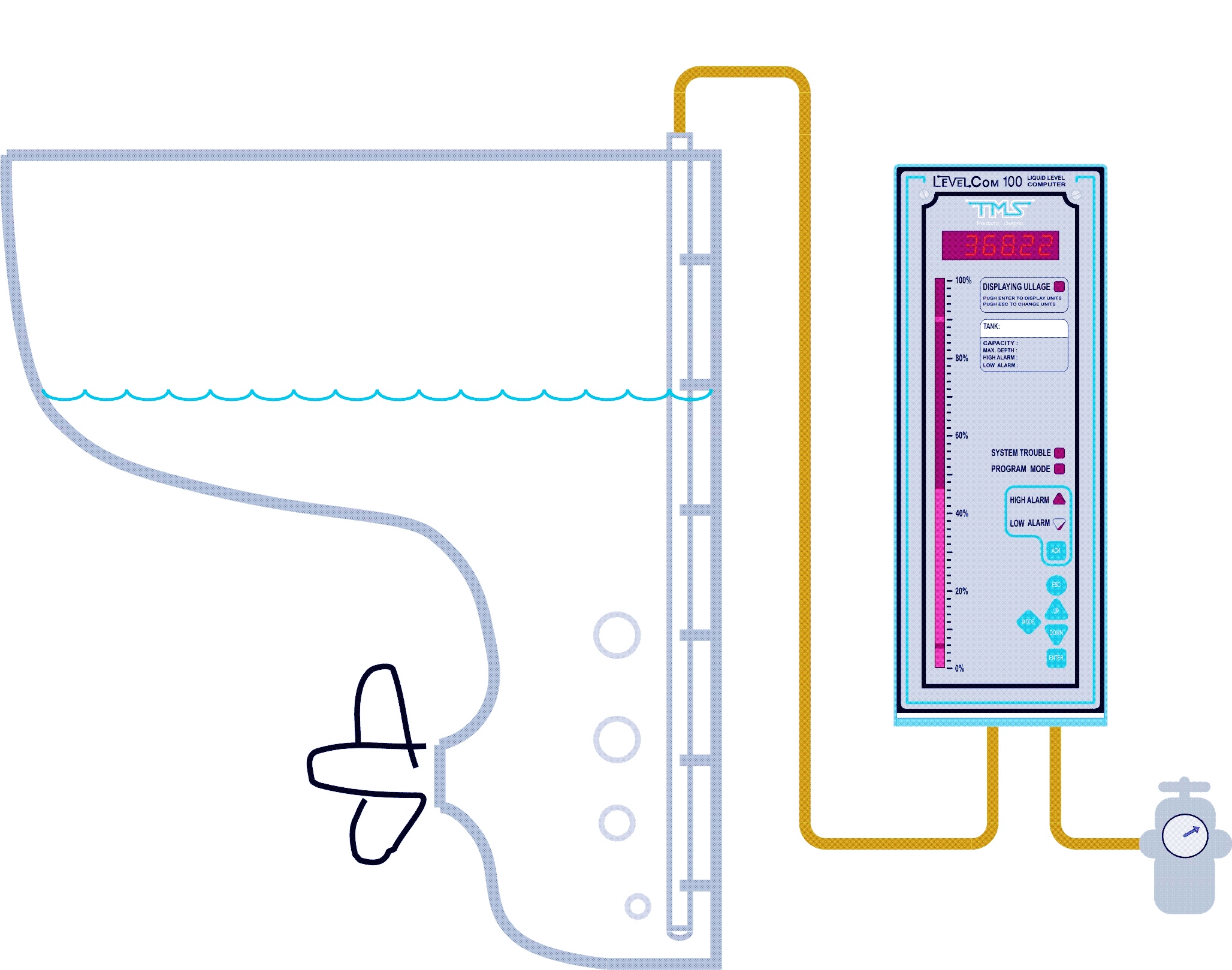

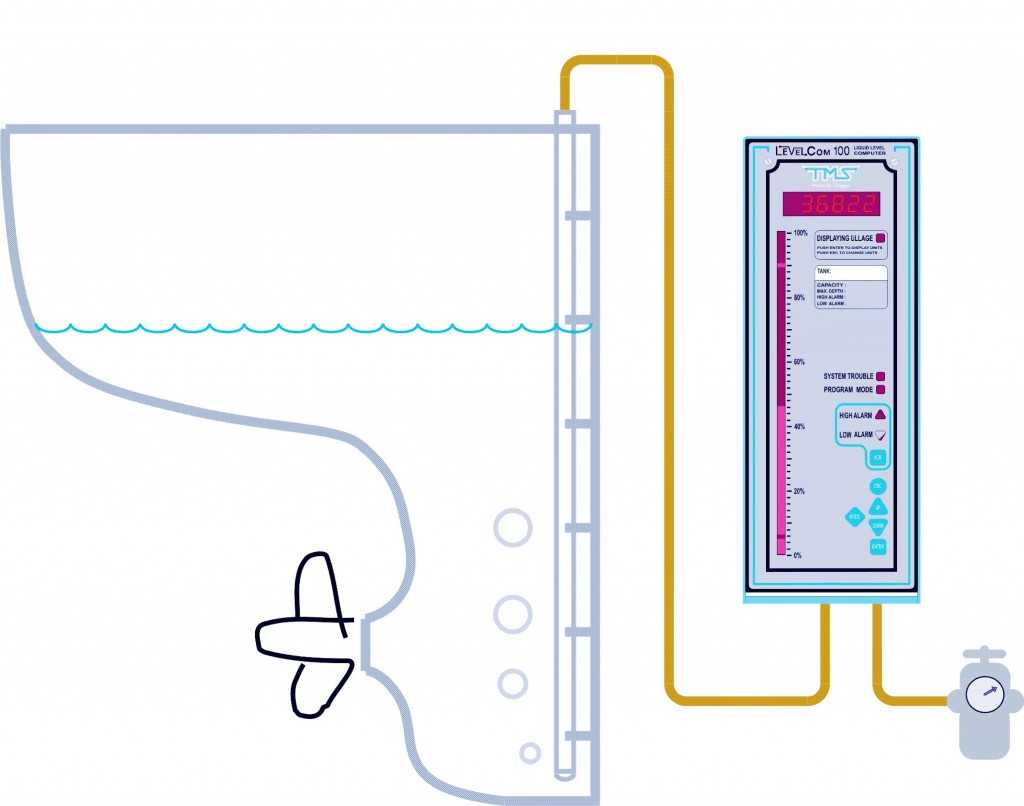

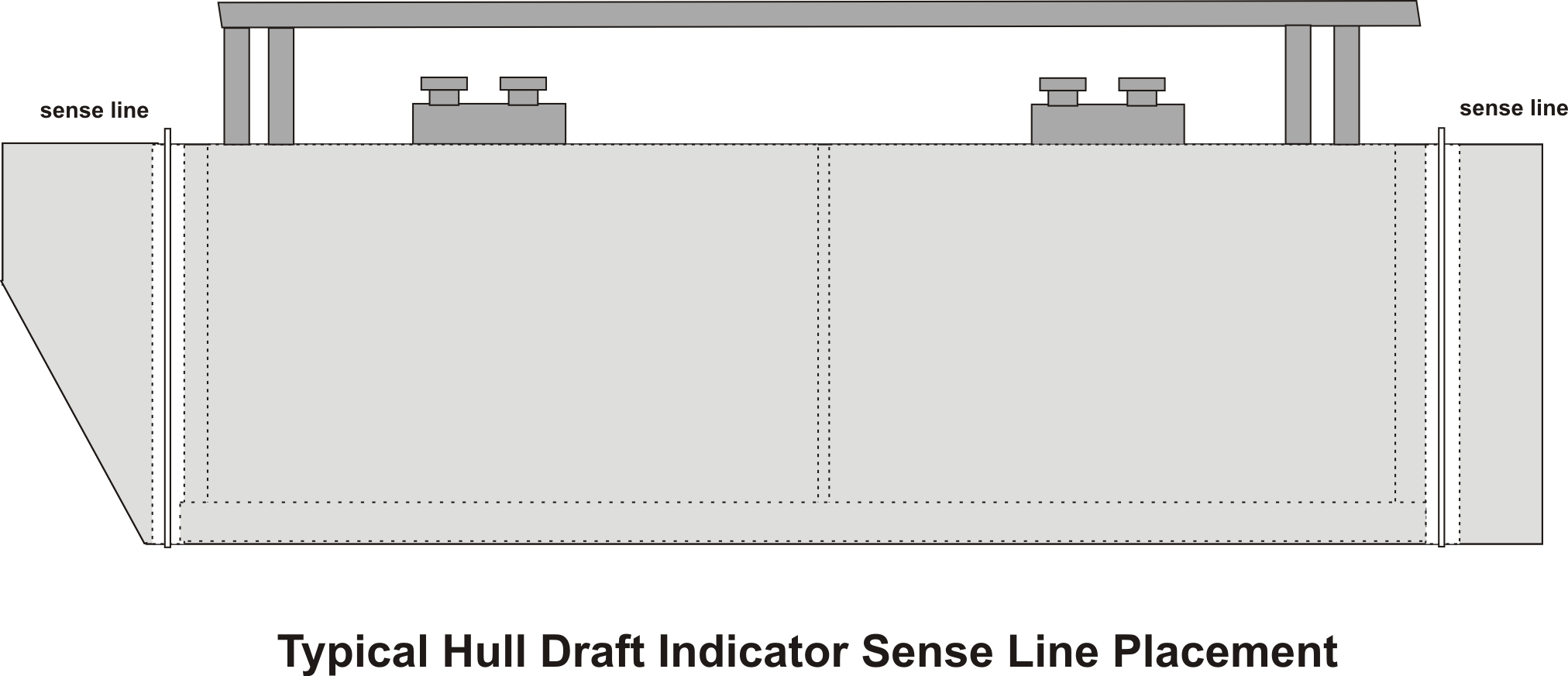

- Hull Draft Indicator
- Drydock Draft Indicator
LC-100 FEATURES:
- Robust, Proven Design
- Field Configurable
- Multiple Set Points
- Control capability – Integrates with third party controllers, data acquisition systems and software
- MODBUS Connectivity (Devicenet & Profibus Available)
- Specific Gravity
- Differential Pressure
- Output Control Relays
- Depth, Weight, Volume
- Works in any shape tank
- ABS Type Approval
- UL Listed
- Long Service Life
The LC-100 is self-diagnostic and is programmed to detect:
- Hardware errors
- Sense and supply line problems including leaks, plugged lines and low supply gas pressures.

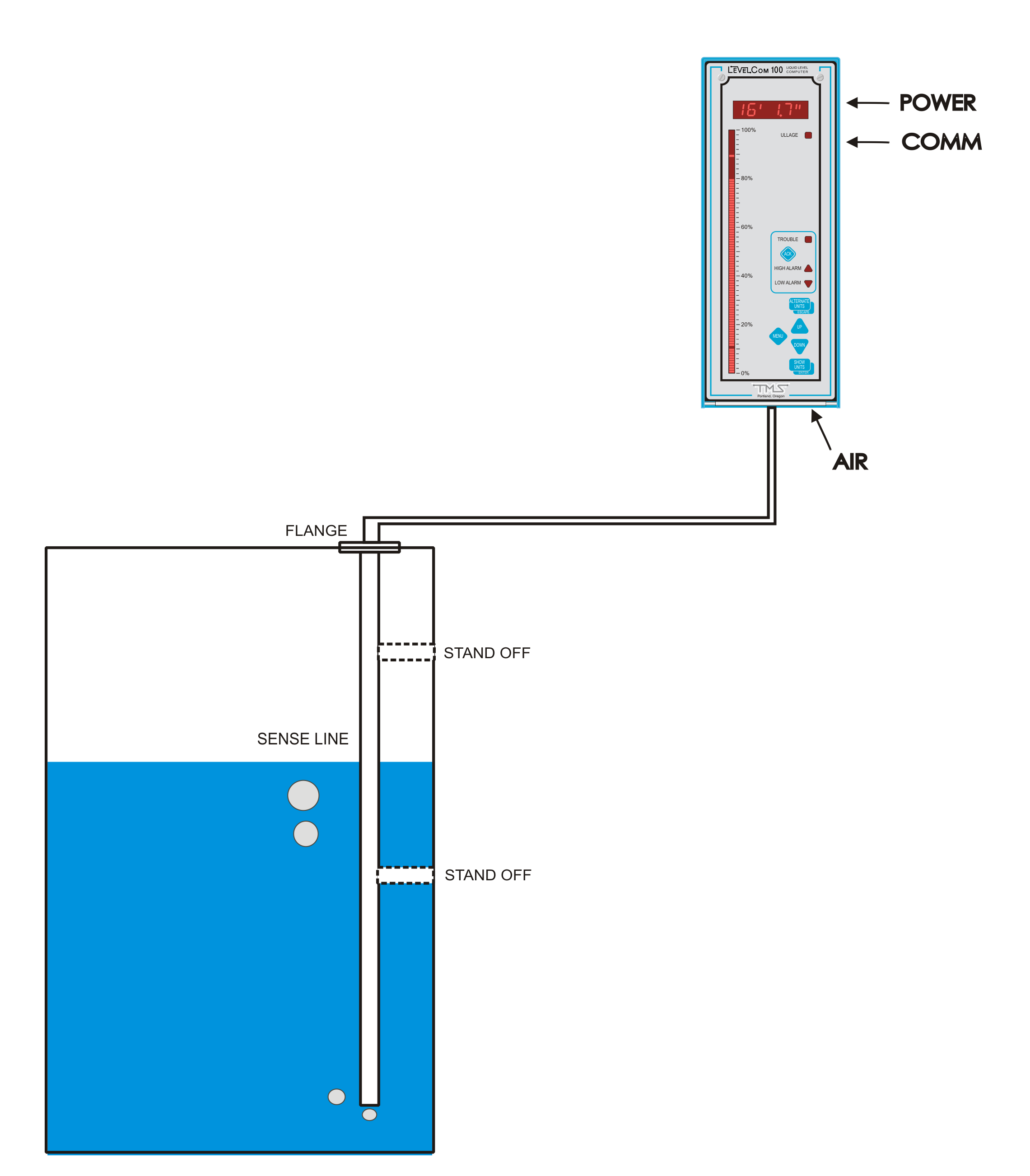

The LevelCom 100 simply requires electrical power, a source of clean, dry air and connection to a sense tube in the tank to operate.
EXAMPLE OF ONBOARD LC-100 INSTALLATION
TO SEE EXAMPLES OF PANELIZED OR CABINET MOUNTED LEVELCOMS, CLICK THE LINK BELOW:
LevelCom Panels & Cabinet Mounts
